Sespel has completed the full delivery cycle for three aluminium silos, each with a capacity of 100 m³, from the initial enquiry in June 2025 to installation at the customer’s site. Customer representatives visited the plant before shipment, and in September 2026 the customer confirmed installation by sending photographs.

Sespel has completed the manufacture and delivery of three aluminium silos with a capacity of 100 m³ each. The enquiry was received on 5 June 2025. The customer received units with individual factory numbers and serial designations:

• BPF35-100.90.09.0001СБ — Silo No. 1
• BPF35-100.90.09.0002СБ — Silo No. 2
• BPF35-100.90.09.0003СБ — Silo No. 3

Project milestones

• 5 June 2025 — enquiry received for three 100 m³ silos
• 21 May 2026 — customer representatives visited Sespel to check equipment readiness before shipment
• 15 June 2026 — completed silos shipped to the customer

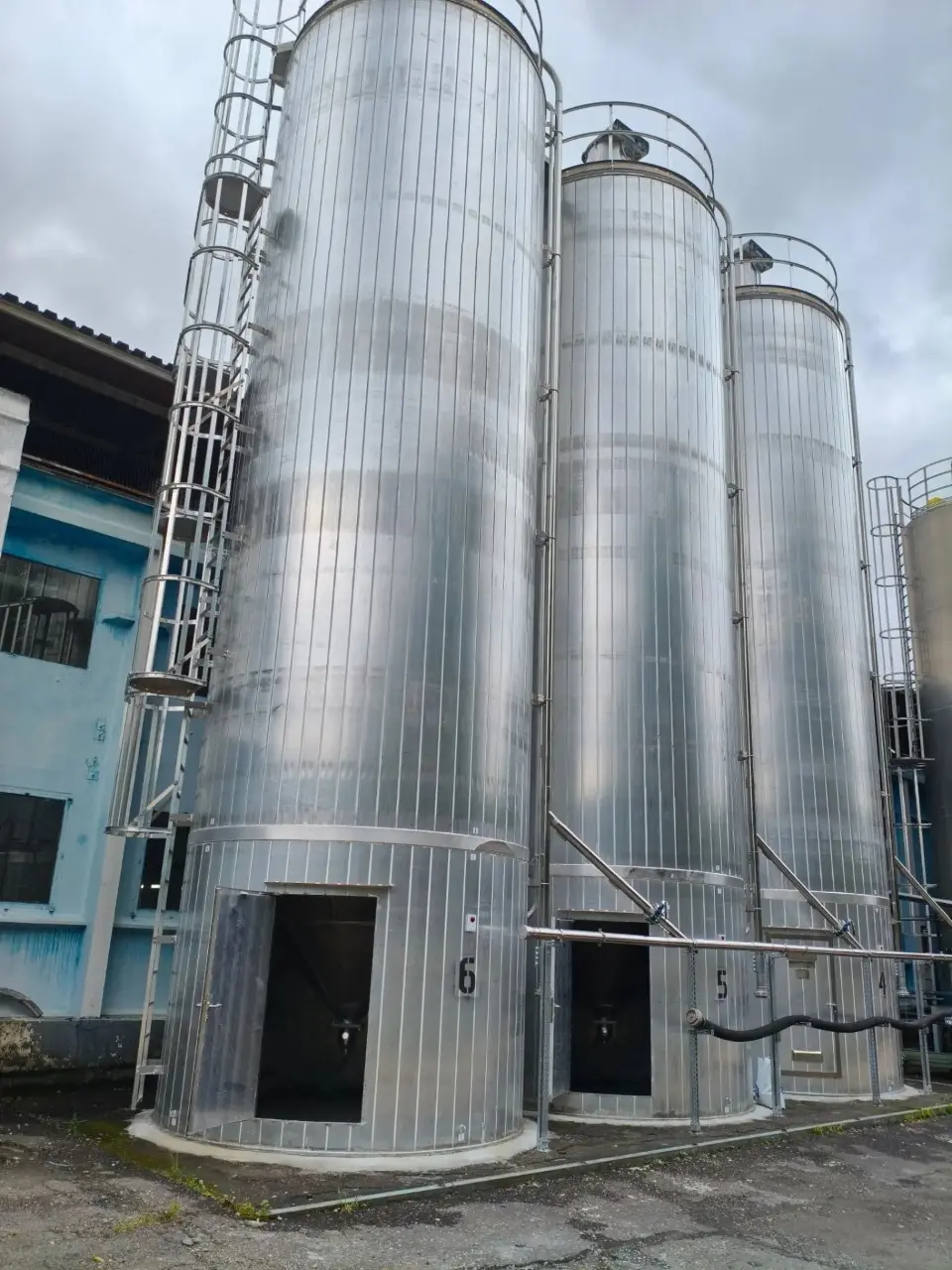

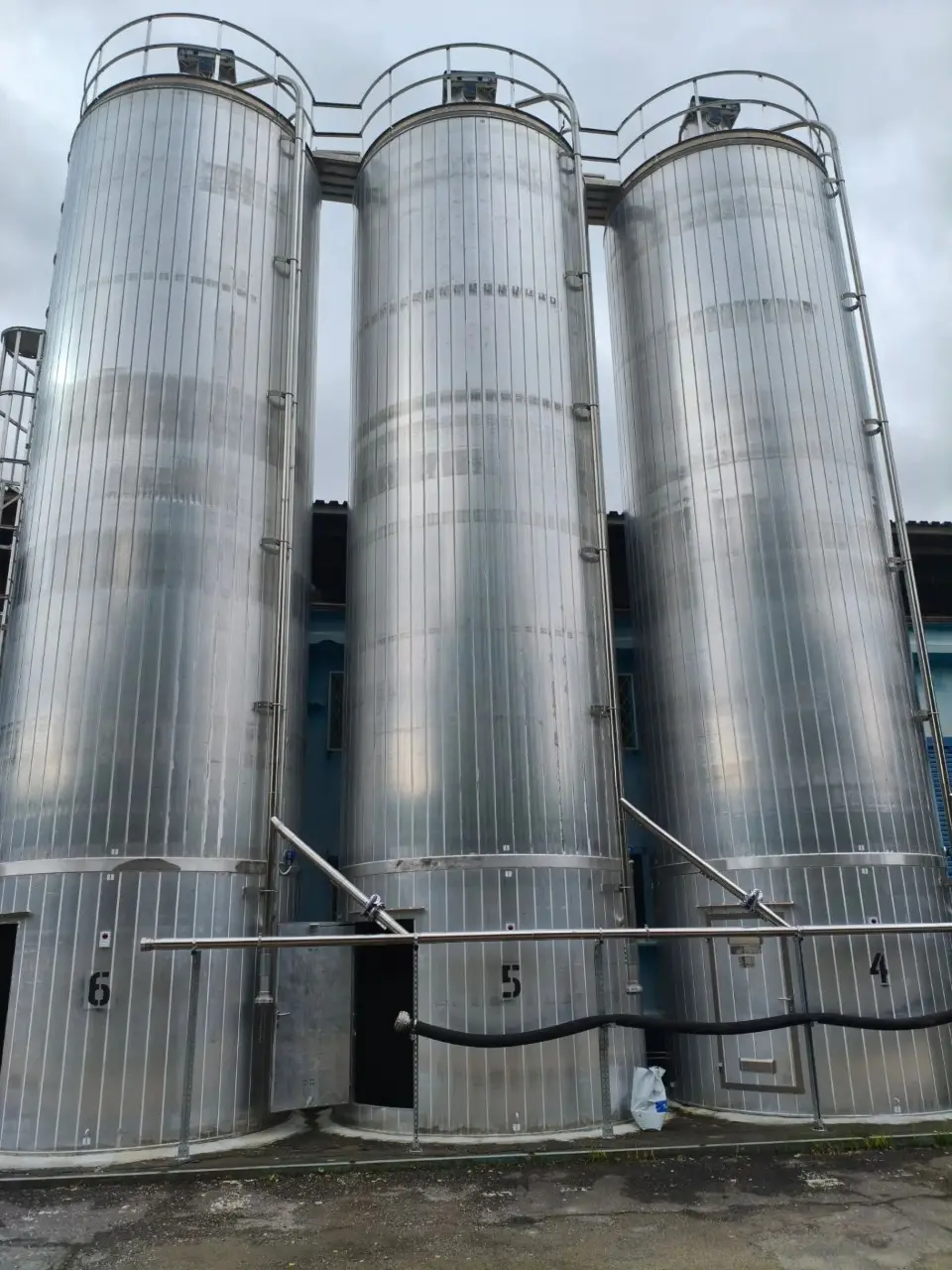

• 15 September 2026 — customer confirmed installation and supplied photographs of the installed silos

Customer visit to the plant

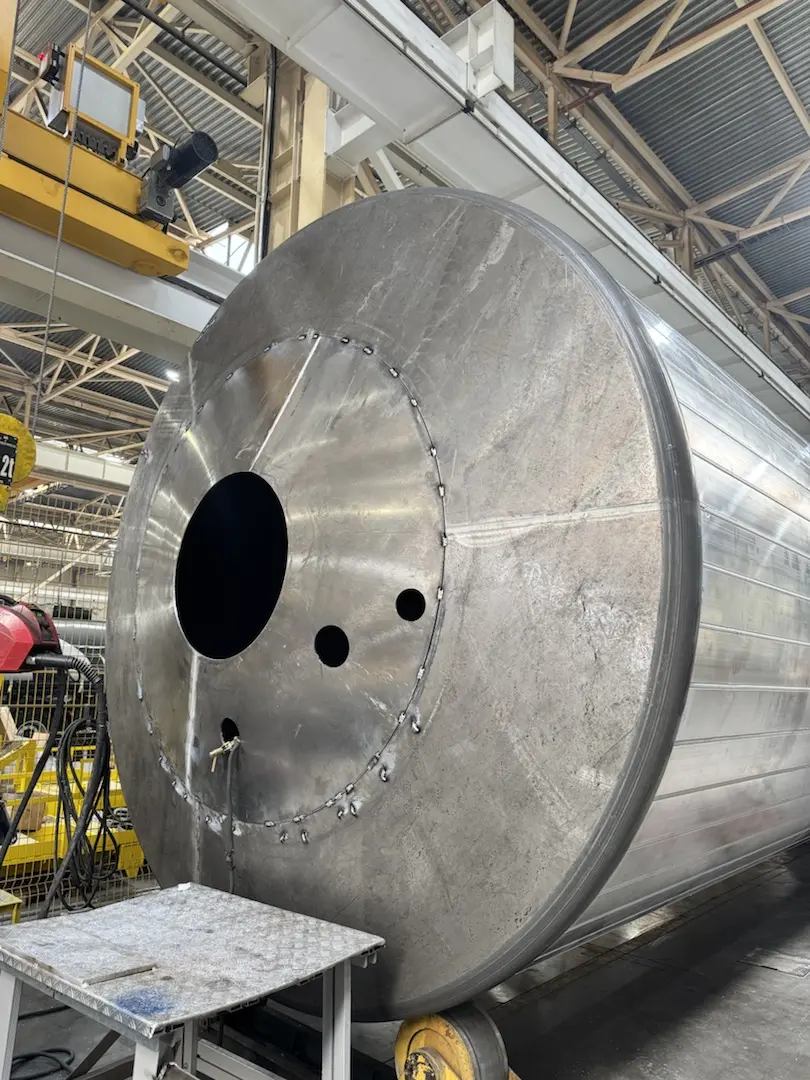

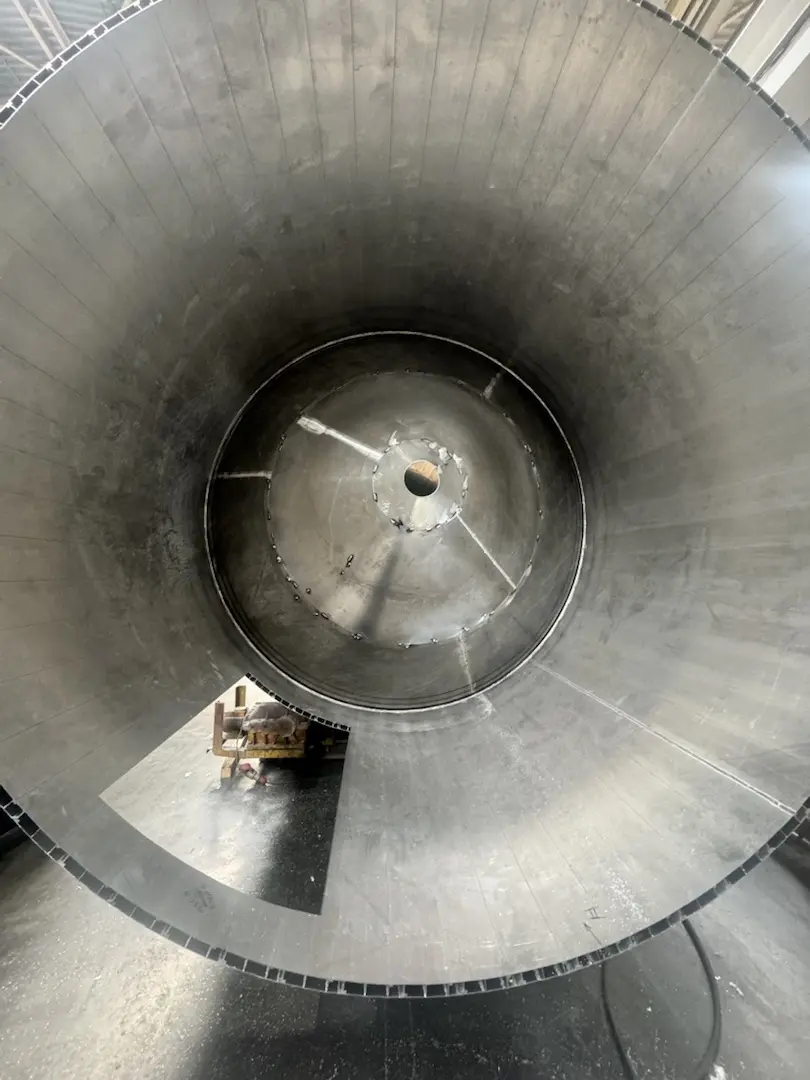

On 21 May 2026, customer representatives visited Sespel to see the production facilities and check the silos before shipment. They toured the workshops, learned about the friction stir welding (FSW) technology used to manufacture the shells, and assessed assembly quality.

100 m³ silo specifications

• Nominal gross capacity — 100 m³
• Nominal net capacity — 97 m³
• Silo diameter — 3,500 mm
• Cylindrical filling height — 10,000 mm
• Protective skirt height — 2,500 mm
• Silo height — 12,500 mm
• Clearance between floor and silo — 845 mm
• Hopper included angle — 90°
• Outlet flange diameter — 200 mm
• Conical roof slope — 15°
• Reinforced silo cone, sheet thickness — 6–8 mm

Equipment supplied

• Three-flight aluminium ladder with fall protection, bolted to the silo brackets
• Ladder locking device — self-closing latch
• Landing between ladder flights with fall protection and a guard grille
• Connecting walkways with safety railings on both sides
• 1,200 mm safety railing around the roof edge
• Silo skirt door with handle and lock set, ventilation openings and a gas-spring retainer
• Installation opening with ventilation, grille and protective cover
• Flanges for the fine filter, pressure relief valve, loading pipe and level sensors
• Painted carbon-steel support ring, 3,630 mm in diameter, for installation on the customer’s foundation

The silos are designed for outdoor storage of polymer material (polypropylene, PP) with a bulk density of 0.9 kg/dm³ and a moisture content of no more than 0.3%. They are designed to operate at ambient temperatures from −50 °C to +50 °C. FSW technology provides structural integrity, leak-tight seams and freedom from internal stresses. The installed silos passed inspection at the customer’s site and have been commissioned.
