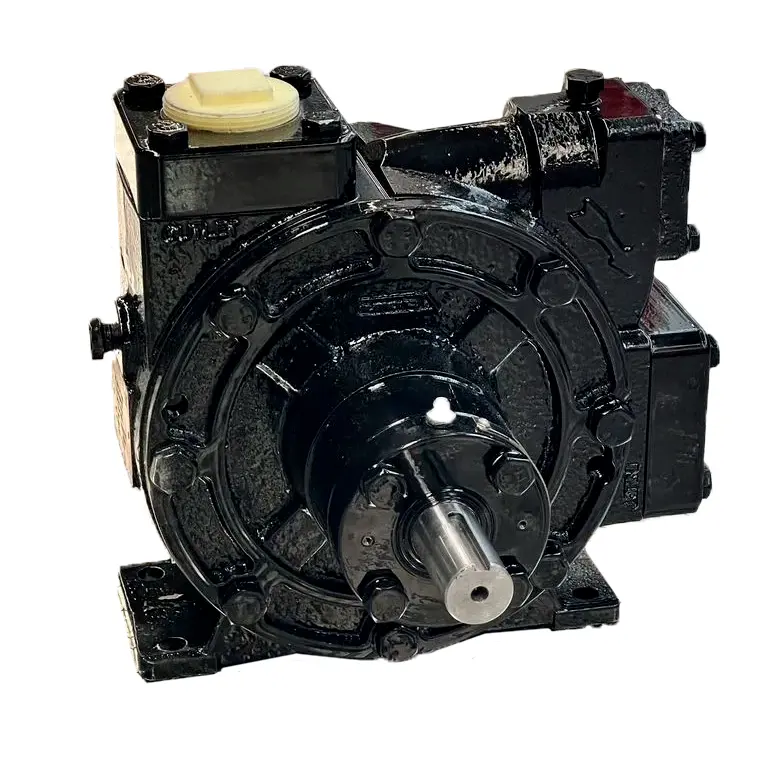

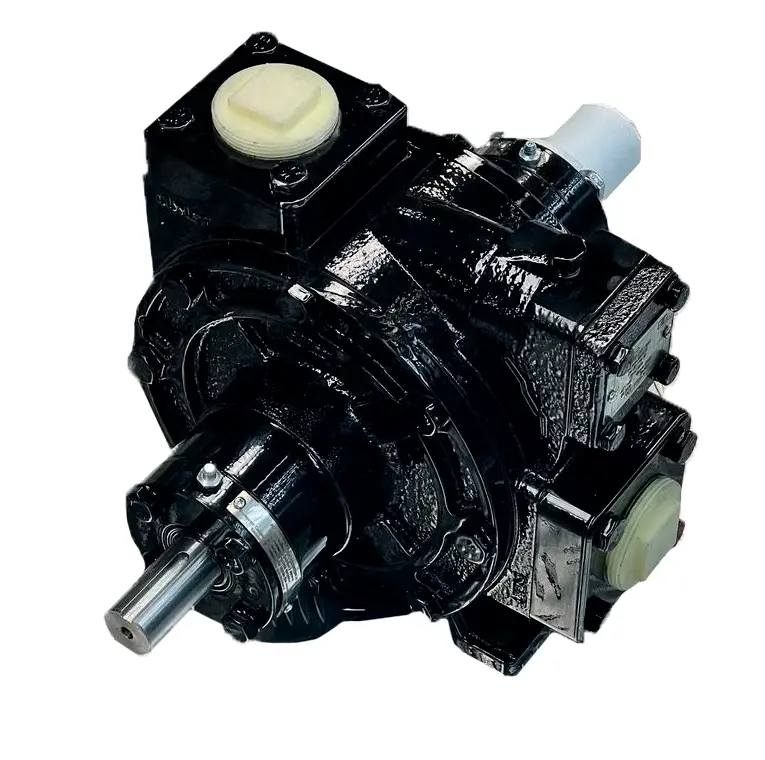

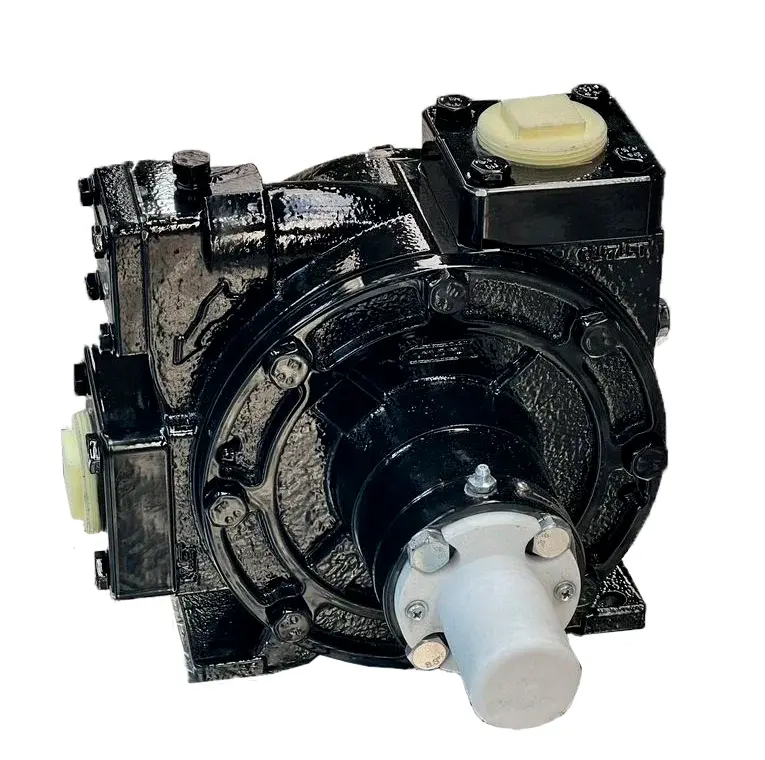

NG-2000 pump

Description

The SESPEL NG-2000 pump transfers LPG and anhydrous ammonia. Developed as a fully functional equivalent of the Corken Z-2000, it replaces imported equipment without modification. It fills and empties road tankers and LPG semitrailers and can form part of stationary pumping units at gas filling stations.

The NG-2000 is designed for reliable, prolonged operation in demanding conditions. It delivers a stable 270 litres per minute at operating pressures up to 24.1 bar and differential pressures up to 8.6 bar. Its 2-inch (50 mm) inlet and outlet suit standard LPG tanker pipework.

Technical features

• Fully interchangeable with Corken Z-2000The NG-2000 is a direct Russian-made equivalent, matching mounting dimensions, performance and installation method for easy replacement of imported equipment.
• Handling aggressive mediaPump materials resist liquefied hydrocarbons and anhydrous ammonia, allowing use with a broad range of gases.
• Wide speed rangeThe 500–750 rpm operating range allows flexible capacity adjustment for filling and emptying tasks.
• Built-in bypass valveThe bypass valve setting of 8.61 bar protects the pump and pipework against excessive differential pressure.

Applications

• Filling and emptying LPG (propane/butane) road tankers
• Transferring anhydrous ammonia in ammonia tankers
• Stationary pumping units at gas filling and automotive LPG stations
• Transferring liquefied gases between storage tank farms and process vessels

As a direct Corken Z-2000 equivalent, the NG-2000 replaces imported equipment without redesigning pipework or modifying the pump assembly. It suits companies seeking local alternatives and reduced dependence on overseas supply.
